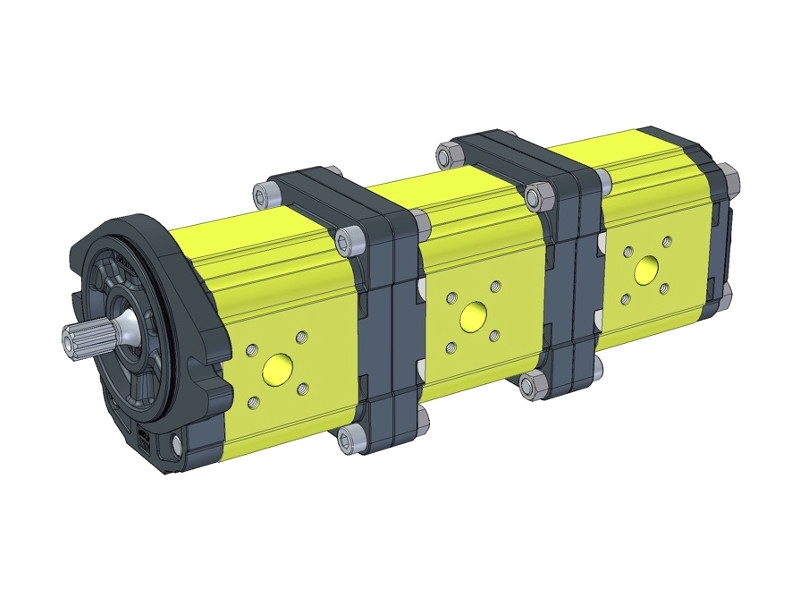

Type XV-2 - Group 2
9M201, 9M210, 9M213, 9M216, 9M217, 9M219
The most popular series of multiple gear pumps. Commonly used in hydraulic systems, appreciated for a wide range of displacements, efficiency and pressure parameters. Made of aluminium.
Ask about product
  • Displacement: from 4,2 to 39,6 cm3 for a section
  • Max working pressure: up to 260 bar depending on displacement of the section
  • Rotation speed: up to 3500 rev/min
  • Unidirectional
  • Cooperation with other pumps from Group 0 - Group 3
  • Available in various configurations, more or less typical for specified market

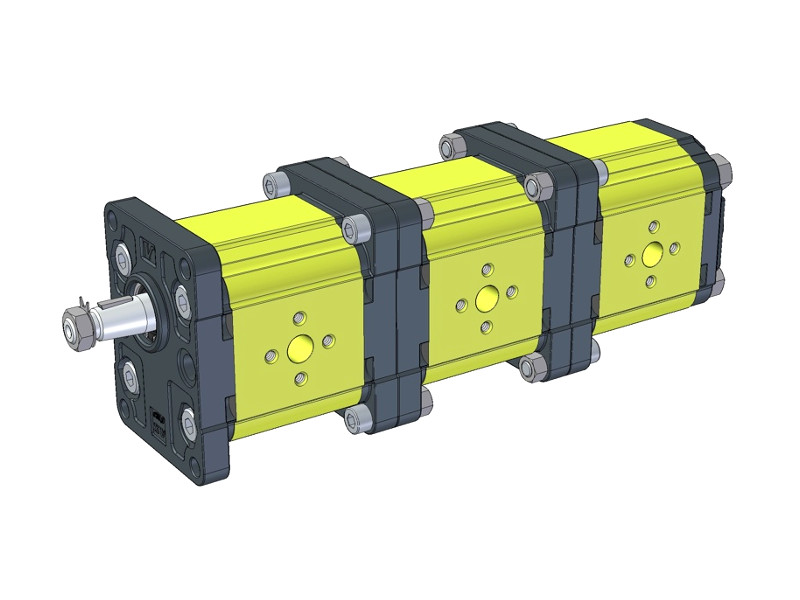

Standard flange ø36,5
Technical data
Flange BH ø50
Technical data
Flange HY ø50
Technical data

Flange BH ø52 German std
Technical data
Flange ø80 German std
Technical data
Flange SAE A ø82,5
Technical data
